Screen Families And Design Language

Study how an OP-1 screen makes its instrument understandable. Some screens use an illustrated object, some a diagram and others a repeated set of controls. Look at how each layout helps the player use the instrument. The lessons below can help you design a screen with its own identity.

The FM, String and Digital references contrast embedded values, physical-model imagery and sparse geometry. DBOX is one additional grouping example, not the template for every engine.

The pattern studies and original applications show how to carry a relationship into a new screen. They are independent compositions, not copied stock drawings. A close study should explain the reference’s grouping, visual centre, hierarchy and colour ownership; a new application should give those relationships its own object and controls.

Stock Templates And The Kit Grid

The stock UI uses screen-specific artwork, named regions and text templates. For example, the synth sampler has distinct overview and magnified waveform regions. Its native binding uses those regions to place live waveform drawing, and creates its gain readout from a text template. The artwork supplies layout; the screen code supplies the changing information.

These layouts offer patterns you can reuse. They do not show that TE used one grid or component library. Stock artwork has fractional positions and different arrangements for different tasks; an underlying authoring grid remains unconfirmed. The kit’s 8-unit construction grid is an optional community recommendation. See Layout And Grid.

Interaction Patterns From Stock

The following lessons combine stock composition with documented controls. “Stock reference” describes the original example; “Use the pattern” is this kit’s recommendation for a new design. A static resource can contain several alternative states together, so it cannot establish when each state appears.

Original example renders below show how to apply each relationship. Each image is a complete 320×160 logical screen. Paired states sit side by side on wider screens and stack on phones. They are host renders of original kit artwork, not stock screenshots or implemented plugins. PNGs use the bundled Iosevka placeholder. Iosevka is included under OFL; stock font resources are not included.

The visual index includes the editable schematic SVGs, control maps, state descriptions and boundary checks. Choose a pattern and compare its two states.

Keep Context Beside Detail

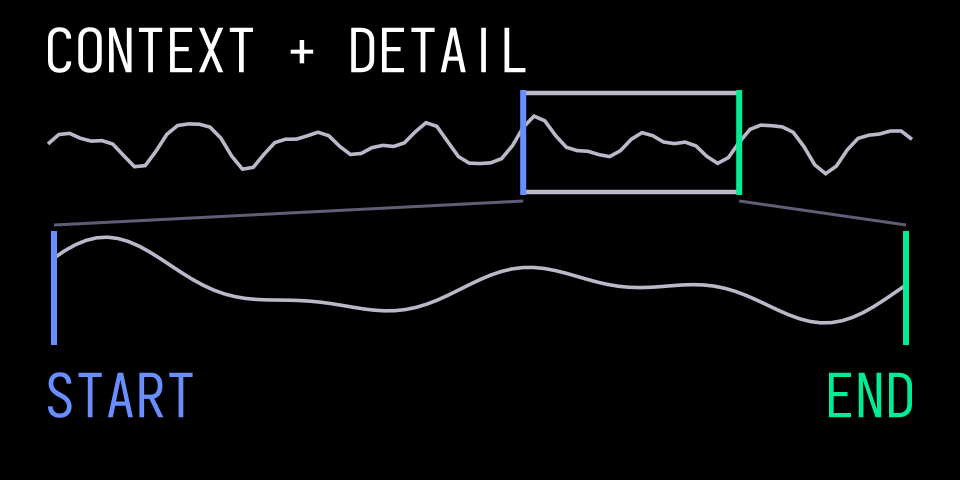

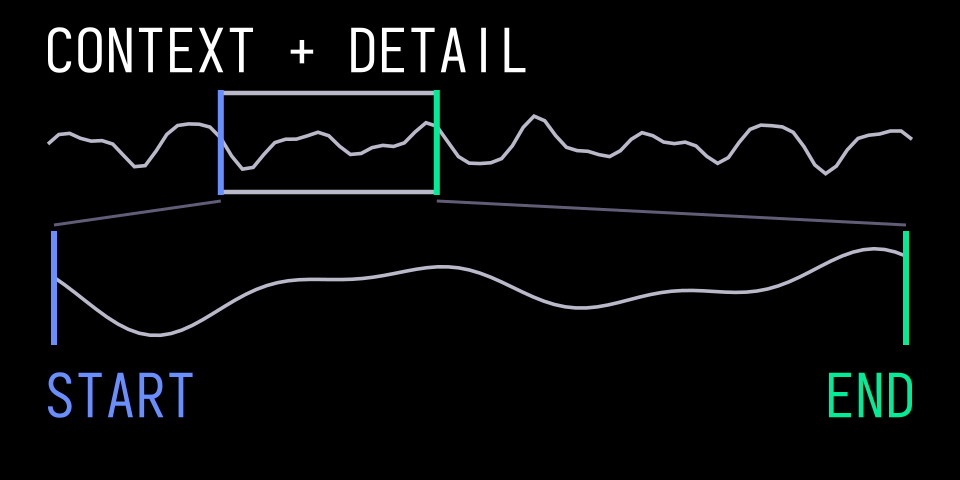

First span, then a later span. Matching Blue and Green boundaries connect the compact overview to the detail region. Both frames stay fixed; only the selected interval and detailed waveform change.

Stock reference: the synth sampler gives a compact waveform overview a separate region above a larger waveform area. These are separate layout regions used by native waveform drawing, rather than one decorative SVG wave.

Use the pattern: keep the whole phrase visible while editing a slice or loop boundary in detail. Mark the detailed region’s relationship to the whole. Give the views distinct jobs; a second waveform should add context rather than duplicate the first. This recommendation does not establish stock automatic zoom, viewport tracking or their input controls.

Separate Editing Focus From Playback

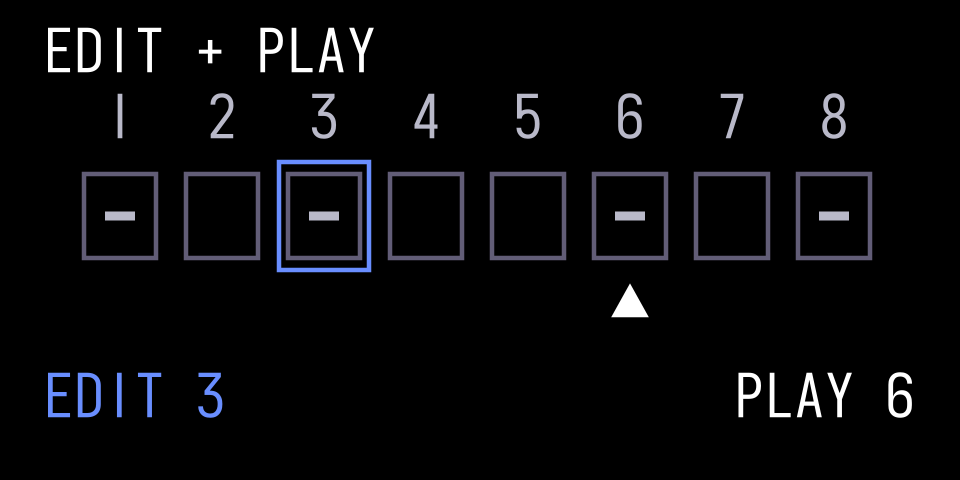

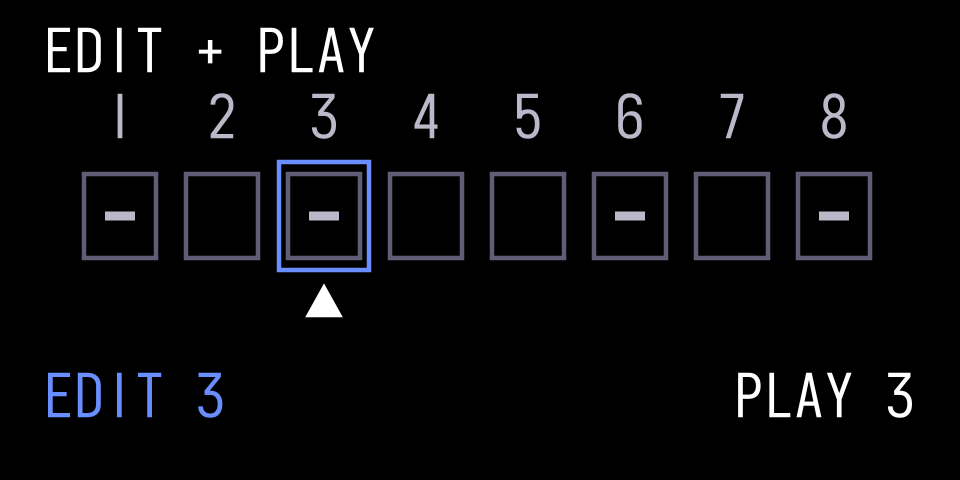

Playback at step 6, then at step 3. The Blue edit outline stays on step 3; the White playback triangle remains distinct even when they coincide. Grey marks represent stored events.

Stock reference: Pattern supports live editing with the editing position decoupled from playback. Its resource also separates the note field and edit pointer. The resource alone does not establish the final cursor appearance. See Pattern, §7.6.

Use the pattern: distinguish stored events, the item being edited and current playback activity. For example, keep an edit outline on step 3 while a separate progress marker crosses step 6. Choose original markers whose shape and position remain distinguishable when they coincide. An activity flash must not make it unclear which event the next encoder turn will edit.

Show The Category And The Choice Together

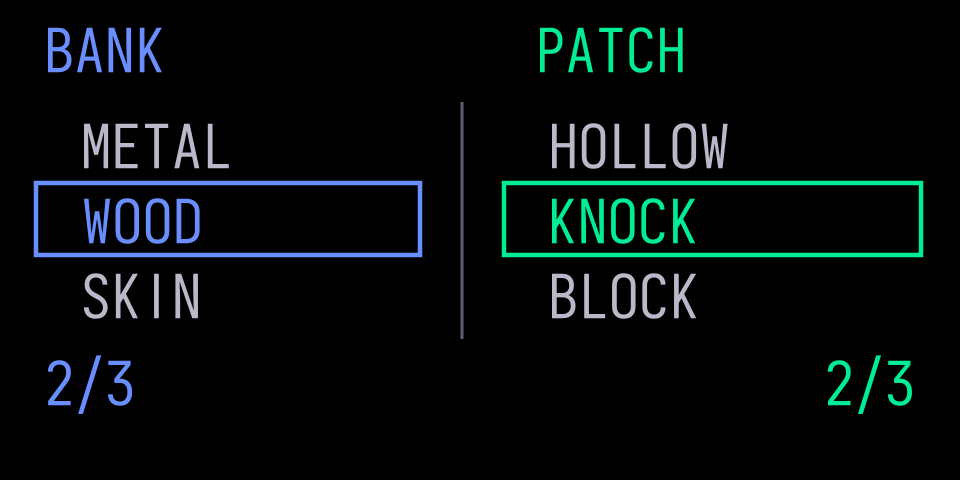

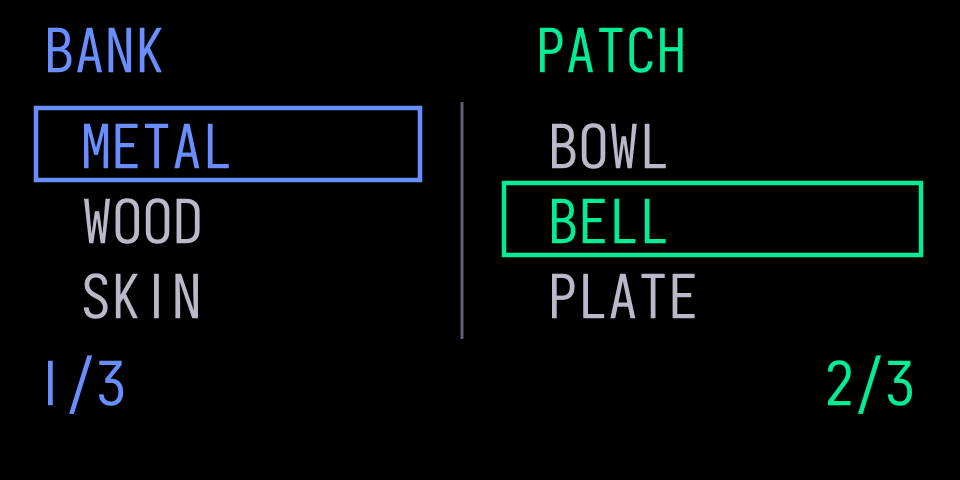

METAL / BELL, then WOOD / KNOCK. Blue changes the bank and its available items; Green owns the patch choice. The new bank receives an explicit valid item choice. Empty and long-name fixtures are in the visual contract.

Stock reference: the preset browser separates engine types and presets into two lists with distinct selection regions. Blue chooses the type and Green chooses the preset. See Changing Sound, §5.7.

Use the pattern: keep a category visible while choosing one of its items. A bank/patch or model/variation browser can use the same relationship without adding a deep menu. Make each current choice and encoder owner clear. Define what happens to the item choice when the category changes; do not infer wrapping, audition, scrolling animation or confirmation from the stock drawing. Check an empty category, long names and returning to the browser. Distinguish a highlighted candidate from an applied choice wherever confirmation is required.

Let Shift Explain The Alternate Function

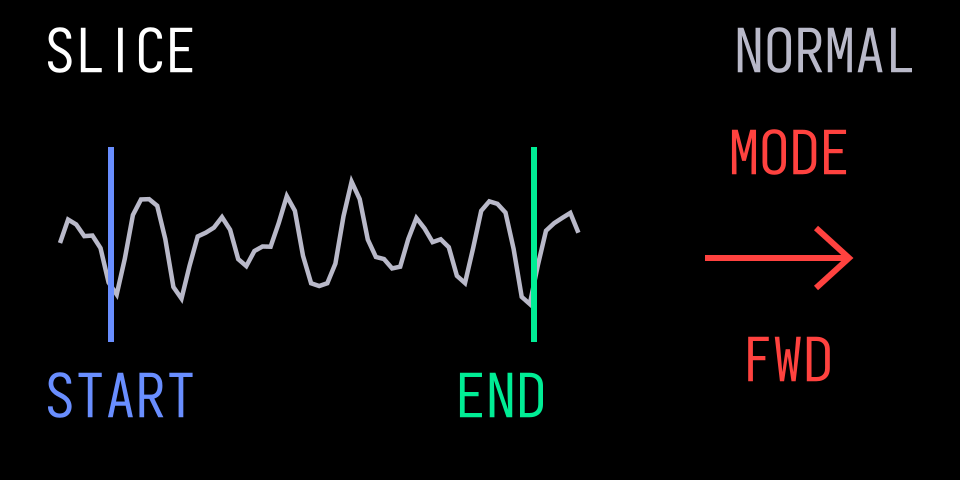

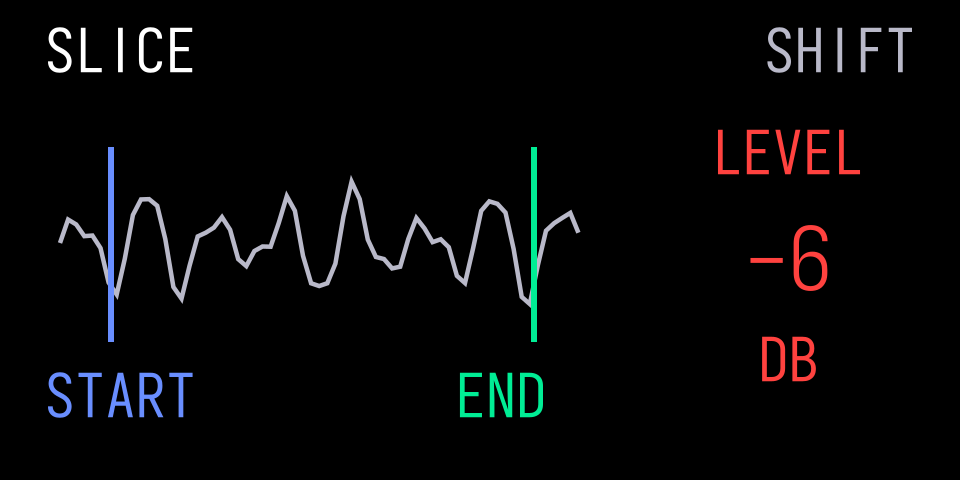

Normal, then held Shift. The waveform, boundaries and Orange ownership remain fixed. The mode arrow becomes a level readout with a name and unit. Releasing Shift returns to the first presentation; both underlying values are retained.

Stock reference: the drum sampler’s Orange presentation can change from a playback-mode arrow to a level number under Shift. The sampler assets contain alternate presentation elements, and stock input dispatch distinguishes normal and Shift encoder lanes. See Shift + Encoders, §14.5.

Use the pattern: show the alternate label, value and unit while that control is available, retaining its colour and a clear positional relationship. If Shift only provides finer adjustment, keep the same parameter identity; do not pretend it is a different function. For a held Shift presentation, check that release restores the normal view without changing either parameter unexpectedly, and that returning to the page preserves the intended values. Showing a Shift group does not implement the input route or preserve its state.

Explain A Route Without Repeating Every Control

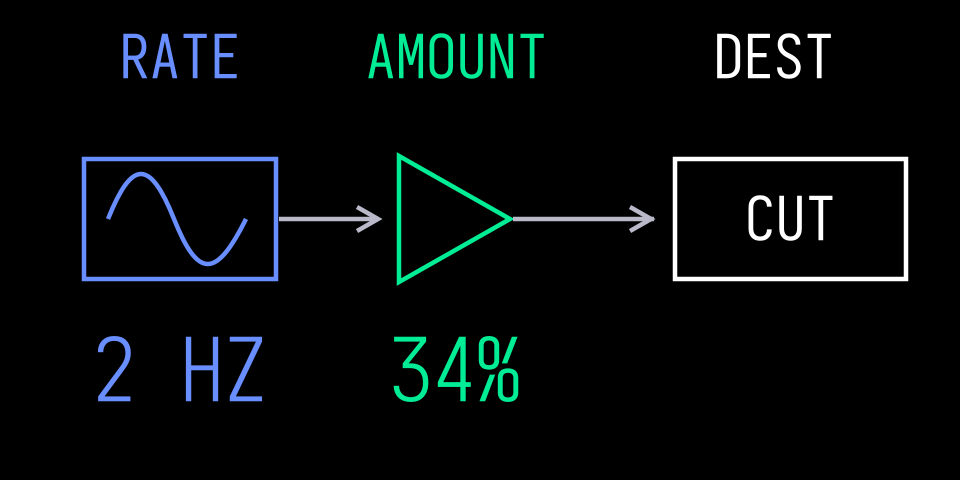

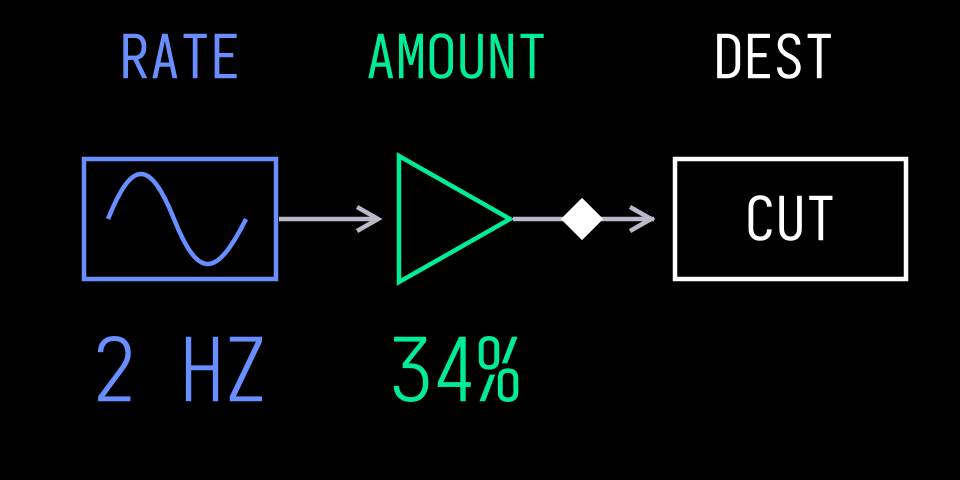

Inactive, then active. The configured rate, percentage amount and CUT destination do not change. A small White activity diamond appears on the directed route; it is a signal indicator, not editing focus. This is an explanatory overview.

Stock reference: Signal Flow uses connected source, processing and output symbols to explain the instrument’s larger system. Shift + Mixer provides that overview. The stock LFO compositions also distinguish a source/rate, amount and destination. See Main Modes, §4.2 and LFO Reference.

Use the pattern: give a modulation or effects overview a clear direction and distinguish configuration from activity. For example, a source → amount → destination diagram can explain a route while a separate marker shows current signal activity. Do not make a node look selectable unless it has an actual selection action. An overview can be explanatory rather than another editor.

Match The Readout To The Kind Of Value

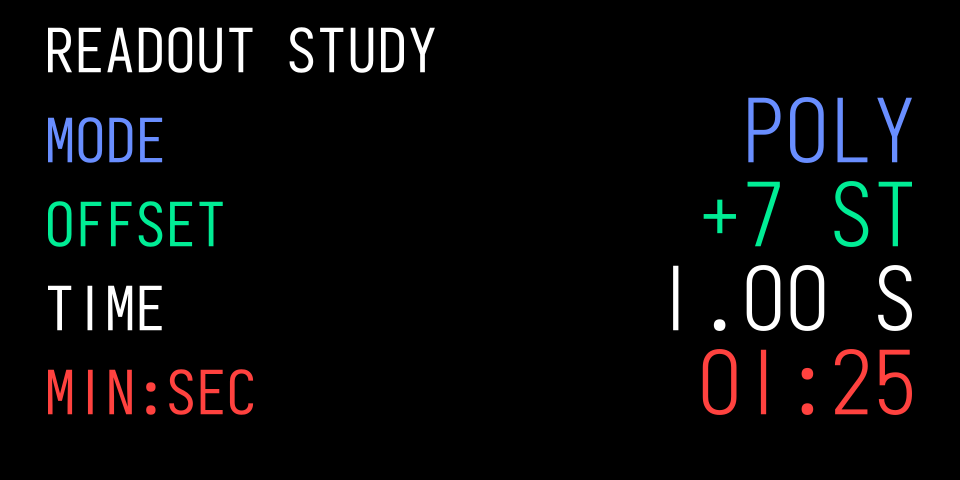

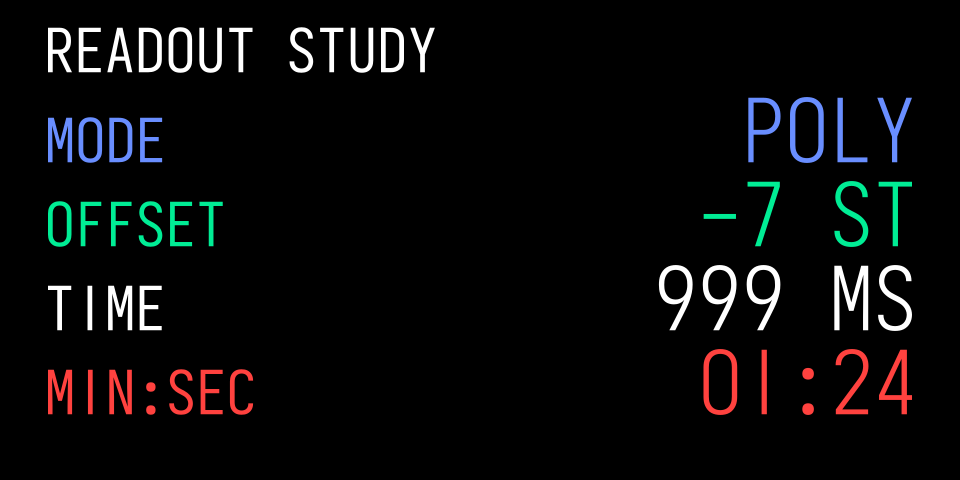

Readout study, not an engine proposal. Category, signed semitone offset, duration and minutes:seconds position use deliberate formats. The sign and duration unit change while label positions, type profiles and right readout edges stay fixed.

Stock reference: Play Mode pairs names with categorical and numeric values; Tempo contains separately sized BPM text templates; Clock separates time digits. Choose a readout layout that suits the value and the available space.

Use the pattern: show an enum as a recognisable choice, a signed offset with its sign, a duration with its unit and a time position in a stable format. Use the stock-derived typography profiles for the reading task. Predefine the formats and layout variants a design needs; do not infer stock switching thresholds from template names or auto-shrink any string until it fits. Check format transitions as well as minimum and maximum values.

Make Motion Explain The Musical Mechanism

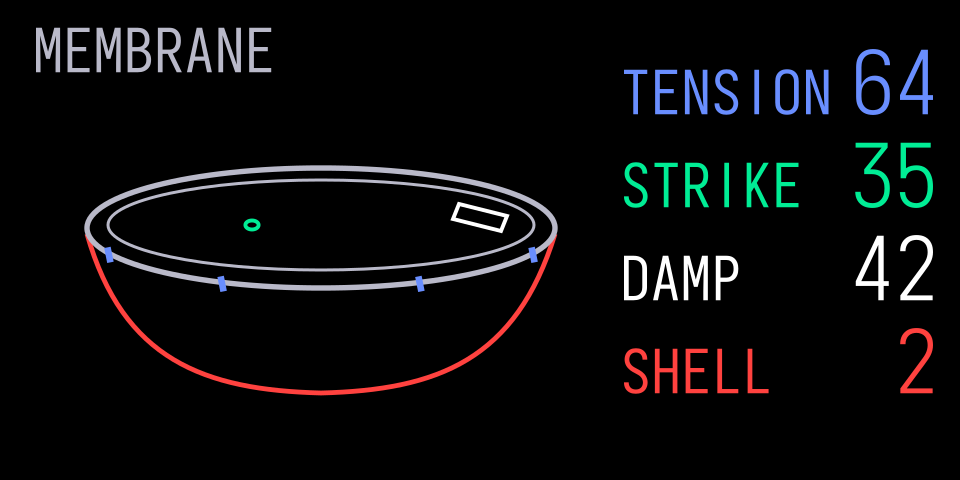

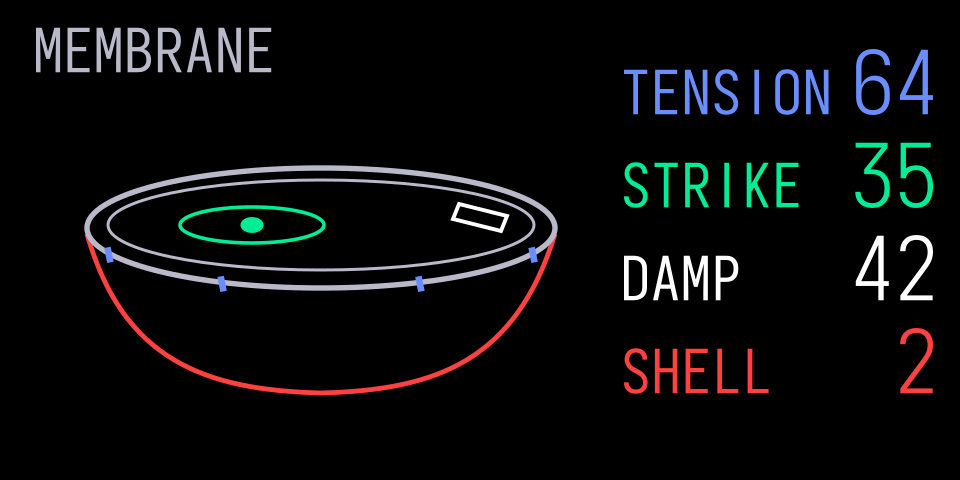

Membrane at rest, then responding to a strike. Rim, camera, controls and readouts remain fixed. The small contact fills and one local ripple appears on the skin; the felt pad stays opaque in front of the response. A real event should start the response, which settles back to the first state. These are static poses, not an animation or timing claim.

Stock reference: Tombola relates moving notes, gravity and rotation to sequence generation. Its resource contains a container and separate note templates; the documented behaviour supplies their musical meaning. See Tombola, §§7.7–7.8.

Use the pattern: preserve movement when it helps someone understand why a musical event occurs. Define what starts and stops it, what a collision or position means and which reference objects stay fixed. Reuse retained parts and measure the supported update path. Check stopped, empty and rapidly retriggered states. Activity feedback must follow real events and settle or stop according to the instrument’s state. Neither a static drawing nor the metaphor establishes a frame rate, a physics algorithm or a CPU budget. See meaningful motion and Graphics.

Finding More Stock Examples

Use these sources when the kit’s original examples do not answer a specific composition, typography or interaction question:

• Existing local firmware: use your own original OP-1 firmware and its unpacked content/display/ resources. Establish the firmware version and inspect the relevant screen family, text templates and element groups. Fonts And Previews explains the local resource location and links to op1repacker’s unpacking documentation. Keep the firmware and extracted resources private; they are reference inputs, not assets to add to a project.
• Official manual: go to TE’s original OP-1 guide and choose the section for the reading task. Synthesizer Mode covers instrument and envelope relationships, Drum Mode provides sampler and DBOX examples, Sequencers explains edit and playback relationships and Shift explains alternate functions. Use the manual as an external reference; the portable skill links to the manual without bundling its pages or illustrations.

For each relevant example, identify the reading order, parameter ownership, text roles, aligned anchors, empty space and what changes with input. State which source supports the observation. A manual illustration can explain a composition; a local resource can reveal templates and alternative parts. Neither alone establishes which parts appear together, animate or respond to a control. Check a matching running screen for those claims. Adapt the useful relationship into original artwork and test the complete value and state range.

Use Reference Screens Carefully

Stock artwork can contain alternative poses, placeholders and labels that native code selects, replaces or hides. A file preview may show several states at once. Use a matching running screen when you need to establish actual animation or runtime layout; do not infer the whole interaction from artwork.

Use your own firmware locally. No firmware resources are included or served here. The website’s separately labelled manual quotations are attributed reference excerpts, not reusable kit artwork. No manual images are bundled with the skill. Public PNG examples use original geometry and the bundled Iosevka placeholder. Iosevka and its OFL licence are included. Stock font files and stock glyph vectors are not supplied. The kit palette is a set of named design tokens, not a promise of exact stock colours or OLED calibration. See Spec.

Layout Guidance You Can Apply Here

Use these working defaults when starting an original screen. They are kit recommendations informed by community device reports, not a measured TE grid.

For a screen with an instrument drawing on the left and readouts on the right, reserve those two regions first. Measure each complete name/value/unit group, then test the drawing’s most expanded state. A fixed 80-unit column pitch does not guarantee 80 units of usable text space. The layout diagram and detailed examples are included in this kit.

The cautious bottom guide reconciles two community observations: maxaw reports about 147 usable units from the top; popcorp suggests keeping important content above about y=140. Physical window alignment and display revisions still need a check on the target. Neither report establishes a universal clipping boundary.

Source credit: maxaw’s layout notes and popcorp’s graphics notes. The actionable rules are reproduced above in the kit’s own guidance.
